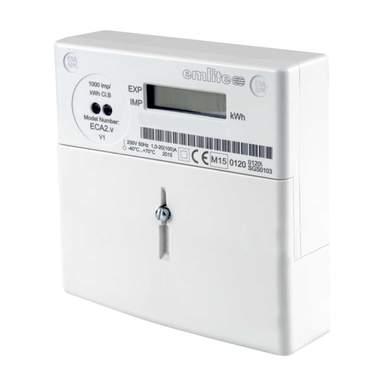

MCG 100A Single Phase Bi Directional kWh MID Meter c/w Ext Cvr

Part Code: M1PH100MID/BI/EC

Buy Now
  • Measures import/export to grid active energy [kWh]
  • Renewables meter with Import/Export facility
  • Extended terminal cover
  • Provides a compact solution for many metering applications
  • Fully MID approved
  • Highly accurate meter may be used for utility billing or micro-generation metering
  • Large easy to read LCD display
  • Display features 8 x 3.5mm characters and can be configured to auto cycle any of the available registers or remain static with only a single register viewable
  • Optical port for configuration or meter reading
  • Highly reliable and capable of withstanding high voltage events and overcurrent without failure
  • Resistant to tamper with reverse energy fraud detection and sealing for life
  • High quality solid brass cable terminals

Related Products

MCG 45A Single Phase Single Module kWh MID Meter with LCD Display

Part Code: D1P45A

MCG 100A Single Phase Prepayment Contactless Card MID kWh Meter with an LCD Display

Part Code: RFIDMETER

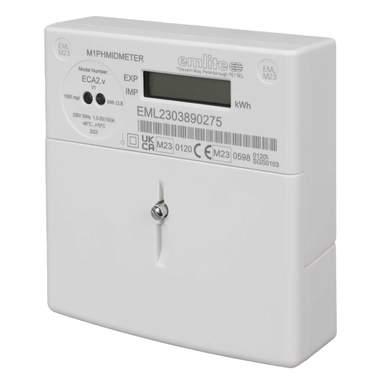

MCG 100A Single Phase Direct Connected MID kWh Meter
