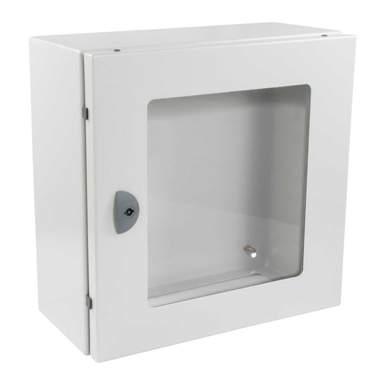

MCG 400mm x 400mm x 200mm Sheet Steel Enclosure with Plexi Door IP66 Grey
Part Code: STP4420
- Enclosure manufactured from 1.5mm thick sheet steel
- Reversible door provided with 4.0mm transparent plexiglas sheet and manufactured from sheet steel
- Epoxy polyester powder coating
- Colour RAL 7035 textured finish
- IP66 complying with IEC/EN 62208, EN 62262
- NEMA 12 complying with UL508A, UL50
- Protection degree guaranteed by the two component polyurethane foam seal
- Impact resistance IK10 complying with IEC/EN 62208, EN 62262
- Door provided with locking system with Ø3mm double bar key and 2 zincpassivated rails to be fixed

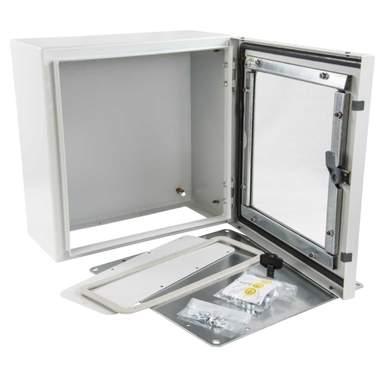

- Mounting plate manufactured from 2.5mm thick sendzimir sheet steel
- Cable entry plate with sealing gasket
- Screws for earth connection and mounting accessories
