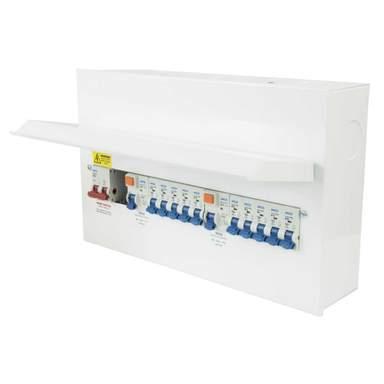

MCG 2 + 5 + 5 Dual 80A RCD Metal Clad Consumer Unit with 10 x MCBs

Part Code: MMSB552MCB

Buy Now

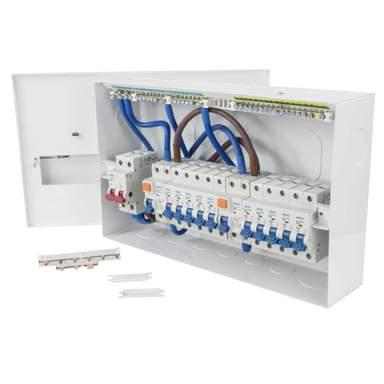

  • Supplied complete with fully fitted and pre-wired 2 pole 100A incoming isolator and 2 x 80A 30mA RCD devices, plus 10 x MCBs: 3 x 6A MCBs Type B, 2 x 16A MCBs Type B, 4 x 32A MCBs Type B and 1 x 40A MCB Type B
  • Ferruled cable ends for secure connections

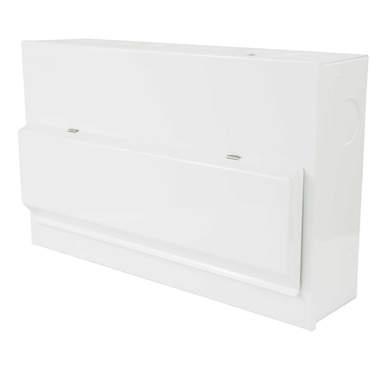

  • Fully enclosed metal construction body with drop-down metal cover
  • Raised keyholes for secure easy installation
  • Multiple circular cable entry knockouts top, bottom and sides (M25, M32 and M40) plus rear aperture/rounded cable entries
  • Finished in white polyester powder coating to RAL9010
  • Retained screws
  • BS 7671 Amendment 3:2015 and BS EN 61439-3 compliant
  • IP20 protection
